Duct Balloon

 Inflatable Isolation Barriers

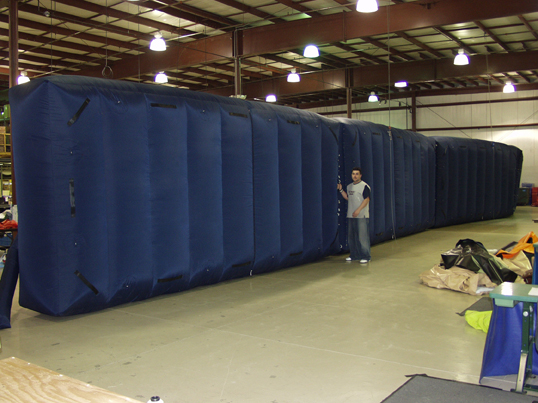

This balloon measured 9’0” (2.74m) high x 91’6” ( 27.8m) wide, but was made in four sections. Each section measured 9’0” (2.74m) high x 23’0” (7.01m) wide and weighed about 45 lbs. (20.4 kg.) each which made them easy to carry up stairways and through the existing access doors.


Each section has mating air supply connections so that the air from the blower can pass through each section.

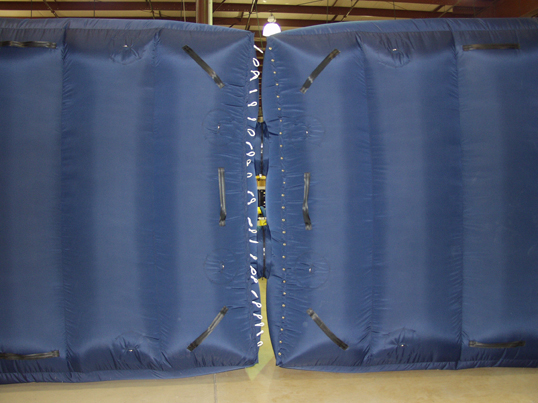

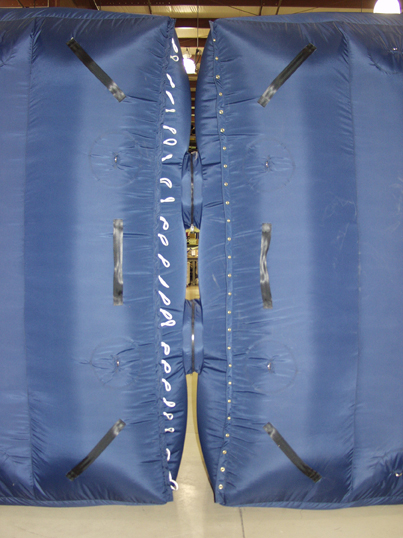

Sectional balloons can mate together with lacings, zippers, or quick link connections

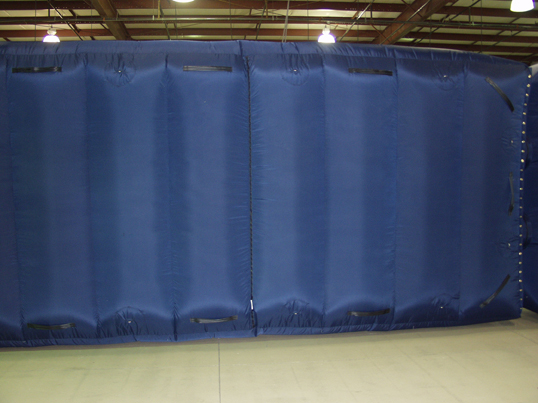

Two of the four sections zipper together and form one half of the 91’6” (27.8m) width. The remaining section is laced together to complete the total width. Total weight of all four section is about 180 lbs. (81.6 kg.)
